Products >> Homogeniser - cGMP

The Platinum Pharmatech Homogenizer is well engineered for the purposes of Mixing, Suspending, Solubilizing, Milling, Dispersing and Disintegrating solids. The Homogenizer comprises stator and rotor assembly, with a rotor inside the assembly that is fixed with three tie rods to the motor.

Features
  • Rotor shaft is directly coupled to motor.

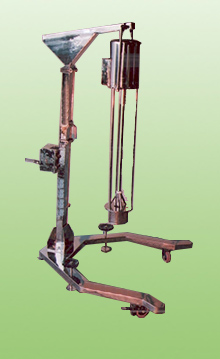

  • It can be directly mounted on the vessel or can be hanged on a separate movable stand with lowering and lifting arrangement.
  • Reduces batch time.
  • Capacity: 0.25 HP to 15 HP (Standard and GMP model).
  • With SS 304 or SS 316 contact parts.
  • Mixing capacities vary according to the process material, viscosity, shape of vessel.


Technical Specifications

Model

Motor
HP

RPM

Maximum
Cap in Ltrs

Shaft Length

PPTHM3HP 3HP 1440 250 900
PPTHM5HP 5HP 1440 500 1000
PPTHM7.5HP 7.5HP 1440 1000 1100
PPTHM10HP 10HP 1440 1500 1200
